How to Build a Raised Planter Box for Your Garden
Whether you want a flower box, an herb garden, or even a place to grow and harvest your very own vegetables, this DIY project allows you to do it – and as a raised box plan, it won’t kill your back to plant (and/or encourages the kids to garden alongside you). A DIY raised planter box is ideal for anyone who is short of space in their garden or doesn’t have the space to plant anything on the ground. You could even add this to a large balcony in an apartment. If you do have a larger garden, consider making multiple raised planter boxes by repeating our guide here today.
DIY Level: Intermediate
Materials you’ll need to build the Raised Planter Box:
- One (1) 12’ 4×4 redwood post (or four posts cut to 3’ lengths)
- Two (2) 4’ 1×8 cedar planks
- Two (2) 2’ 1×8 cedar planks
- Six (6) 2’ 1×4 cedar planks
- 2’ wide 1/4″ grid hardware cloth (aka wire mesh)
- 24 (or more) 1-5/8” exterior screws
- 16 3/8” x 2” long hex screws and washers
- Staple gun, ratchet, sander/sandpaper, exterior wood stain
- Landscape fabric (aka weed barrier)
- Potting mix or soil + seeds/plants
Equipment Needed:
- Compound miter saw (aka “chop saw”)
- Power drill
How to build the Raised Planter Box: DIY step by step project for beginners
Step 1: Measure the wood post
Begin by measuring your 4×4 post into four equal lengths (if you haven’t done this already).
Step 2: Cutting the wood
Use your miter saw to cut the post into four equal 3’ lengths. Repeat the process with your other pieces of wood so that you end up with two 4’ lengths of 1×8, two 2’ lengths of 1×8, and six 2’ lengths of 1×4.
It probably goes without saying, but remove any type of staple or alien material on the ends of your wood pieces. You want your wood to be in the best condition possible at this point in the process, to create the perfect raised planter box for your garden.
Step 3: Angle cutting
If your miter saw cuts angles, you’re in luck. Simply measure and mark 1” lines from what will be the top ends of each of your 4×4 posts. Set your miter saw at a 45” angle, and make four cuts to each post, rotating the post 90 degrees (to a new side) after each cut.
This adds a nice finishing touch to the post-tops, which will be visible with this raised planter box plan design.
If your miter saw doesn’t rotate vertically for angle cutting, that’s okay. Measure 1” in from the sides of your post, right along the top edge.
Set your miter saw horizontally to cut 45 degrees, then line up the 1” points with the saw and make your cuts. Do two opposite sides first, then rotate your post 90 degrees. Match your saw blade to the outer cut points, and cut the other two opposite angles.
Repeat the process described above to complete cutting the tops of all four posts.
Lay your 4×4 posts down and measure 31” from the bottom of each post on just two adjoining sides.
Mark on both sides of the measuring tape for each side.
Marking on both sides of the measuring tape gives you two points of reference for levelness. What you’re marking is the point at which the top of your 1×8 side boards will be attached.
On your two 4’ long 1×8 boards, you’re going to mark two points; these are for the hex screws to attach the side boards to the 4×4 posts. Measure 1-3/4” in from the sides of your 1×8 boards, and 1-3/4” in from the top/bottom of the boards.
Step 4: Drilling
Make an “X” to mark the precise points you’ll be predrilling for the hex screws.
Line up the top edge of the 1×8 board with the 31” mark that you made on one of your posts. Use a drill bit of your choice (example uses a 1/4″ bit) and predrill the holes.
Place a washer then hex screw into each predrilled hole.
Tighten up the hex screws with a ratchet until they’re pretty tight. Don’t overtighten that the cedar board splits, however. That’s counterproductive. The last thing you want is to ruin your precious work at this point, or you’ll be back to square one. Take your time throughout the process and don’t rush any stage to ensure you create a high-quality DIY raised planter box.
1-3/4” is a nice measurement here because a 4×4 post really measures in at 3-1/2”, so that makes the hex screws perfectly centered on the post.
Once both 4’ long 1×8 boards are attached to the posts, it’s time to attach the two 2’ long 1×8 boards. The hex screws that attach these two 1x8s shouldn’t hit the other hex screws. You can make sure of this by holding up a 2’ board next to the post, and holding up the hex screw as well.
Although you want these next eight hex screws centered on the posts, you won’t be measuring in 1-3/4” from the sides of your boards because you have to factor in the 3/4″ width of the 4’ board that’s already attached to the post.
So your side markings for your 2’ long 1×8 cedar boards will be 1-3/4” from the top/bottom of your board (same as the 4’ lengths) but 2-1/2” in from the sides. (2-1/2” = 1-3/4” [post center] + 3/4″ [other 1×8 actual width])
Again, mark your drilling points with an “X.” Ensure these are accurately measured on either side for best results.
Predrill just through the board at this point (as opposed to predrilling through the board and post together). Although these holes are further from the ends of the 2’ boards than the holes for the 4’ lengths, it is still highly recommended to predrill. Cedar is prone to splitting, and this extra step doesn’t take much time but adds a lot of precision and protection from board split.
When your 2’ boards have been predrilled, have a helper hold up the 4’ board attached to the posts. Align one end of a 2’ board with your 31” height line (or with the 4’ board if you prefer; hopefully the alignments are one and the same), and drill a bit into the 4×4 post through the top predrilled hole.
Attach the washer and hex screw into this predrilled hole with a ratchet. Repeat for the other top hole, on the opposite side of this 2’ board.
At this point, you should have the top two hex screws holding the 2’ board in place while also connecting the posts into a three-sided structure.
Measure, then predrill the four holes on your other 2’ long 1×8 board. You can use the structure as a sort of saw horse, if you’d like. Just take care not to drill into any wood that’s already in use or attached.
Repeat the process, on this second 2’ board, of attaching just the top two hex screws. This stabilizes the structure, making it much easier to install all the bottom hex screws onto a solid structure with the boards accurately in place.
Predrill the posts for the bottom holes on your 2’ boards, then install the bottom four hex screws (two per board).
Measure the width of your planter box; it should be 2’ wide. Carefully flip your planter box over so it’s resting on its post-tops.
Take your 1/4″ hardware cloth (aka “wire mesh”) and get it ready to unroll.
Wear gloves when working with this stuff. It’s safer, easier, and more efficient. While you may be tempted to skip wearing gloves, you’ll want to protect your hands when cutting this material as it can easily scratch or injure you.
Allow for at least 7” of additional length from the inside side of your 4×4 posts, then unroll the hardware cloth until it reaches the other two 4×4 posts. Unroll at least 7” more, then mark your cutting spot. Use wire cutters (aka “tin snips”) to cut the hardware cloth.
Throw a few staples from your staple gun to attach your hardware cloth to what will be the bottom edge of your 4’ long 1×8 sides. Only staple near the center of the planter box at this point, just enough to hold the hardware cloth in place while you work out the corners.
Run your extra hardware cloth up one of the 4×4 posts to determine where you should cut to work around the post.
Begin with a short snip in from the side, up to the corner of your post.
Next, snip from the end of the hardware cloth along the corner of your post down until you reach the same horizontal point as your first snip (which should be even with what will be the bottom edge of your 1×8 board).
Repeat for the other post on this end of the planter box so that you can flatten the inner part of the hardware cloth, between the two posts.
Carefully fold the newly cut corner “flap” downward along the post, into the inner portion of your planter box.
Bend the thin portion of the flap so that it touches the side board.
Once the flap is folded and in place on the inside of your planter box, staple the edges of your hardware cloth all the way up to the 4×4 post. Repeat for the other flap on this side of your box.
With your hardware cloth stapled into place, you can more easily work with the inner portion, between the two posts. Fold it so it will tuck up inside the planter box.
Push the hardware cloth down so the fold is even with what will be the bottom edge of your raised planter box.
This is what your box will look like at this point. Repeat all these steps for the other end of your box, so that you can flip your box back to upright and continue working on it that way.
Because you don’t want massive amounts of extra hardware cloth poking out of your box, to rust, snag, or cause hurt, it’s time to trim. We’ll start with the first folded flaps near the box post. You only need to keep enough to staple securely, about 2”.
Trim the flap to about 2” high, and throw the rest away. Repeat for the flaps on all four posts.

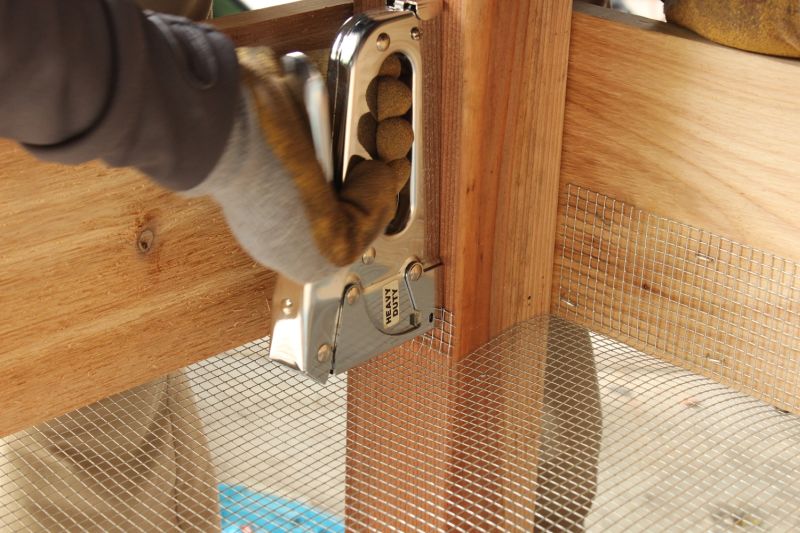

Staple what’s left of the flaps securely to the posts or planter side boards.
If the ends of your hardware cloth are short enough (anything shorter than 4” is probably fine), go ahead and staple it to the 1×8 end boards.
If the ends of your hardware cloth are longer than you want, it might be easier (and less sharp) to simply fold them over and staple them. We found it easiest to carefully tip the planter on its side to do this.
Fold the ends of the hardware cloth over so that the ends are sandwiched between the rest of the hardware cloth and the side board. Staple in place.
When the hardware cloth is completely secured and in place, it’s time to support it with some 1×4 cedar boards. Flip your planter box over to rest on its post-tops. Lay out your six 1×4 boards evenly.
Predrill each 1×4 support board as it rests in place on the bottom of the 1x8s. The hardware cloth will be sandwiched between these two boards.
Grab some exterior screws. We had 1-5/8” handy so used those, but anything over 1-1/4” would probably be fine.
Screw in your screws to the predrilled holes.
Sand any obvious rough spots, such as the ends of your 1×4 boards.
If you want to sand the post-tops (which is recommended), it might work well to use an older bit of sandpaper, so you smooth the wood but don’t take off too much of your cuts.
Lightly sand all other edges and corners and surfaces as you want.
Congratulations! It’s built! The hard part is definitely over. However, there are a few more steps to go in our DIY raised planter box, and then your work will be completed.
Although you’ve (hopefully) used outdoor-friendly wood, like cedar and fir, you’ll still do well to treat the wood to withstand the elements and last longer. We used Australian timber oil in Mahogany Flame to stain and protect this planter box. Let it dry, then move it to the place in your yard, balcony, or deck that you plan on using the raised planter box.
Cut, fold, and staple breathable landscape fabric (aka “weed barrier”) to the inside of your planter box. Make sure you fit this well to avoid any weeds from growing and damaging the plants you plan to add to your raised planter box.
Although this step (adding landscape fabric) is optional, doing so will help to keep your soil in the box while allowing excess moisture out of the box.
Grab a big bag of potting mix or soil of your choice.
Fill your planter box about 2/3 full. Make sure you distribute the soil evenly throughout the raised planter box, so there are no gaps or thinner areas.
At this point, the raised planter box is yours to do with what you want. Throw some vegetable seeds in there, plant a few flowers, section out some herb plots, whatever. As for our raised planter box, it was to be a flower box shared by two of our young daughters, who wanted their spaces divided and designated with rocks they had painted during the “boring” part of the construction.
They chose a variety of flowers to incorporate – marigolds, petunias, pansies, geraniums, zinnias – and placed them lovingly and carefully. The raised planter box design is fantastic for this!
The great thing about a raised planter box is that you can easily move it around your garden or add it to a balcony or patio if you are short on space. If you find that your plants aren’t getting enough sunlight in their current location after a short while, simply move it elsewhere in your garden. Some people like to focus on seasonal flowers, and a few times a year they’ll completely redesign the raised planter box to keep up with the current season.
When all is said and done, it might look a hodge-podge this year, but the raised flower planter box is a pride and joy to all members of our family. It’s the perfect way to teach your kids about gardening and looking after plants, and they’ll love checking on the progress of their work during the upcoming weeks and months.
We love how it brightens up a currently colorless corner of our yard. Of course, you could opt for even brighter blooms in your DIY raised planter box, which will soon make it a focal point in your garden.
The box is tucked away between a backyard shed and some raspberry bushes. The mahogany flame hue looks fresh and bright in this setting.
Next, we will run a drip hose discreetly up into the box so the flowers have an actual shot at life. Otherwise, well-intentioned as we all are around here, relying on manual watering methods, there’s really no hope for flora survival.
This is a wonderful addition to a backyard, a front yard, a side yard, or even a deck or balcony. The raised planter box design is easy on one’s back and just different enough from other flower beds or herb or vegetable gardens that it’s eye-catching and a treat to look at. We think this is a wonderful project for the whole family to be involved in, and kids will love having their own section of your new raised planter box to look after by themselves. While it may look like there were a lot of steps involved, you’ll be pleased with how quickly everything comes together in your new DIY raised planter box this year. We hope you enjoy making your own and growing the things you love.
